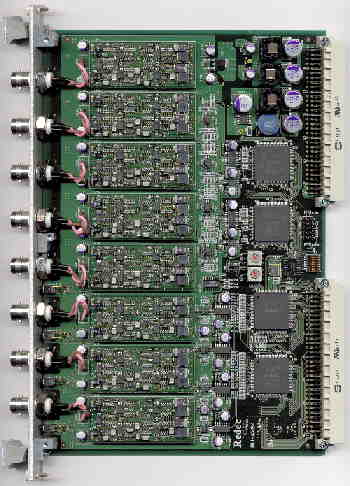

8Ch AD + 4Ch DA  <RU-AX84>





Features

bulletSimultaneous 8 channel AD + 4 channel DA
( 4ch DAs and the last 4ch ADs share 4 BNC connectors and switch-selectable.
bulletResolution : 16 bit
bulletSampling frequency : Programmable , max. 96KHz
bulletSampling clock : Internal or from IO bus
bulletADC : TI ADS8361
bulletDAC : TI DAC8831
bulletAnalog filter  : 8 order LPF
Programmable (20KHz,10KHz,5KHz,2KHz,1KHz,500Hz,200Hz,100Hz)
bulletRange : +/- 2V
bulletInput impedance : 10K
bulletOutput impedance : 100
