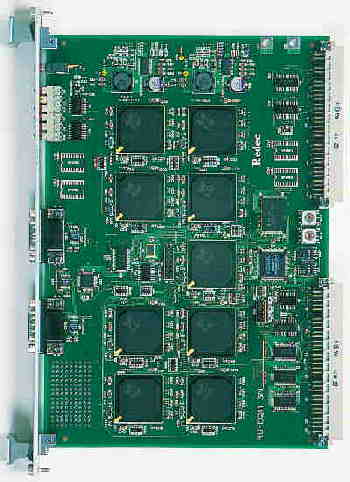

TMS320C6713B DSP Board <RU-DQ13>



Features

bulletDSP : TI TMS320C6713B(300MHz) 9 chips ( 1 master & 8 slaves )
bulletRAM : Internal 256Kbyte on each DSP
           External SDRAM    32Mbyte for master DSP, 16Mbyte for slave DSPs
bulletROM : 16Mbye fFlash memory for master DSP
bulletInternal communication between DSPs : Host IF parallel & McBSP serial
bulletCommunication with PC : RS232C(115.2Kbaud)
bulletCapable of multiple boards

Application Program

bulletDigital Filter

bulletMulti channel Active Noise Control

bulletReal-time multi-coherence/partial-coherence measurement

bulletAdaptive beam former

bulletMulti-channel echo canceller
